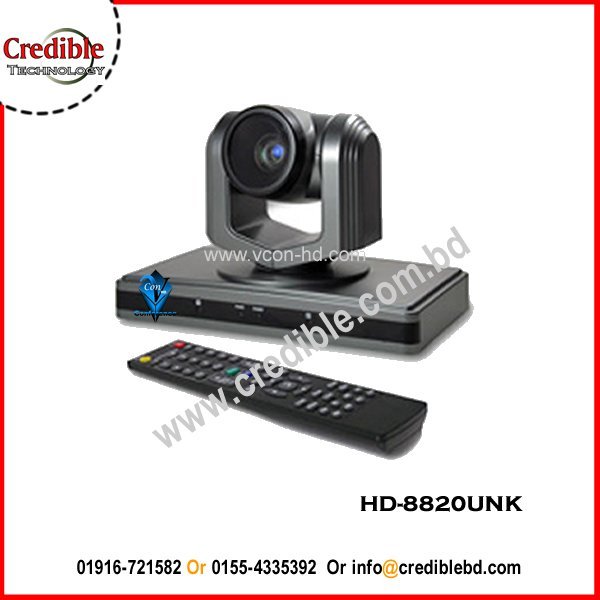

HD-8820UNK USB PTZ video conferencing camera– skype for business video conferencing hardware
HD-8820UNK USB PTZ video conferencing camera
Features :
- IR: Control sensor, Used for receive the signal of remote control.
- USB3.0 : USB 3.0 video output and control interface.
- VISCA RS-232C IN
- VISCA RS-232C OUT:
- Used for connect multi camera, and RS-485 Control.
- DC IN 12 V interface
- Professional video conference camera design
- High speed pan movement
- Competitive advantage of low-cost
- High-quality digital display
- Working and standby indicator lights
- 1920×1080 pixels progressive @30fps
- 20x optical, 12x digital zoom
- F=4.7-94mm F1.6-3.5
- HOV 55.4 degree
- 1/2.8” Type Exmor CMOS 3.27 Mega Pixel Sensor
| Image Sensor |
Sensor | 1/2.5″ Primary color CMOS 2.1M | |
| Effective Pix | 2.1 Mega Pixel | ||
| Mini.Illumination | 1.0Lux at F 1.8 | ||
| White Balance | Auto/Manual | ||
| Gain Control | Auto | ||
| Backlight Compensation | on/off | ||
| Shutter speed | 1/5 – 1/4000S | ||
| S/N ratio | >50db | ||
| Lens | Focus | f=4.5-45mm F1.8-2.2 | |
| Iris | Auto/Manual | ||
| Lens | 10X Optical zoom | ||
| HOV | 48.4° | ||
| Video Output interface | USB 3.0 | ||
| Video output mode | YUY2 | 1920×1080 30p, 1280x 720 30p | ||
| PTZ Control interface | EIA/RS232C,EIA/RS485(Bidirectional) | ||
| Control protocol | VISCA,PELCO-D | ||
| Baud rate | 9600/38400bps | ||
| Patrol line | 4 tour lines | ||
| Preset position | 64 preset positions | ||
| LCD Screen Display | Optional | ||
| Speed match | Pan/Tilt movement speed depends on camera module zoom in/out | ||
| OSD Menu | Access to OSD Menu and adjust camera module parameters | ||
| Image auto flip | Support Horizontal/Vertical image flip | ||
| Pan movement speed | 1-200°/S | ||
| Tilt movement speed | 1-150°/S | ||
| Pan movement range | 0-355° | ||
| Tilt movement speed | 90°(up), 45°(down) | ||
| Auto Horizontal Scanning | Support Pan scanning automatically | ||
| Boundary scanning | 0-355°(Programmable) | ||
| remote controller | IR Wireless Remote controller P/T/Z | ||
| Power supply | DC12V,2A | ||
| Work Temperature | 0-50°C | ||
| Humidity | 0-95%RH | ||
| Size(LXWXH) | 250mm x 140mm x 154mm | ||
| Weight | 1380g | ||
