Home » Shop » MAC1000 Fingerprint Standalone Controller

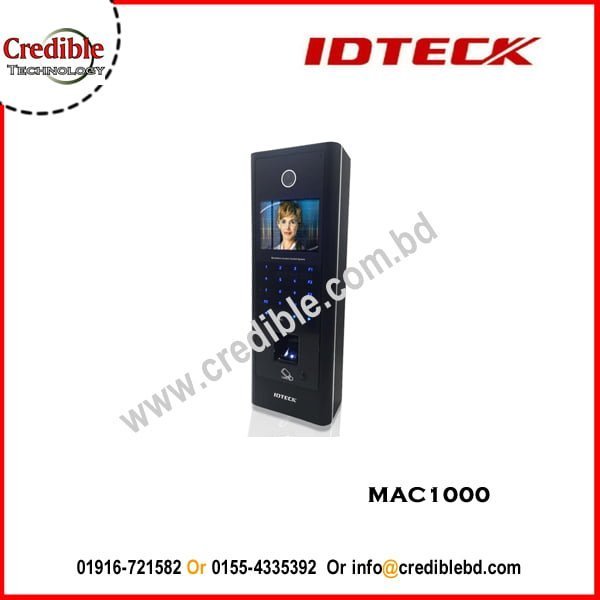

MAC1000 Fingerprint Standalone Controller

৳ 1.00

Fingerprint Identification Controller

Category: Brand:
Description

MAC1000 Fingerprint Standalone Controller

MAC1000 Fingerprint Standalone Controller Access Control System and Time Attendance system in Bangladesh.

System Features

Windows CE Operating System Applied for Higher System Performance and Stability
Graphical LCD for Easy Setup and Registration including Multi-Language (English, Korea, and User-Defined) and Voice Guide Support
PoE (Power over Ethernet) Capability
Image / Video of Access Status
– Image (640 x 480 / JPEG): Stores up to 6,000 Images
– Video (640 x 480 / 15FPS) : Stores up to 500 Videos
Fingerprint Registration : 25,000 Users (Two Fingerprint Templates)
– Store up to 5 Fingerprints per User ID
– Allows Registration of 10 Administrator Using the Fingerprint
Maximum Registration
Users (Cardholders): 100,000 Users
Event Buffers: 500,000 Events
WiFi Supportable
Built-in Videophone Interface as well as DVR Interface
Advanced Security Time Schedule Configuration
Individual Configuration Setting per ID
(Time Schedule, Card Usage Expiration Date, Accessible Reader, Door Opening Time, etc.)
Anti-Passback, Arm/Disarm, Duress Mode, 2-Men Operation Function
Alerts generated for when Door Held Open past allowable time as well as Forced Door Open
Supports 26-Bit Wiegand Output Port (MAC1000) / 34-Bit Wiegand Output Port (MAC1000SR)
MAC1000 / MAC1000SR may function as a Standalone Controller as well as a Reader
Tamper Switch (2EA)
4 – State Supervised Input (On / Off / Cut / Short)
Designed to Withstand ESD (Electro Static Discharge) Shock
Compatible Software: IDTECK STANDARD, IDTECK TIME PRO



* Specification
ModelMAC1000
CPU32 Bit ARM11 Processor (667MHz)
Operating System (OS)Microsoft Windows CE 6.0
MemoryProgram256M Byte DDR SDRAM
Data128M Byte Flash Memory
Storage4GB MicroSD Card
Fingerprint Registration10,000 ~ 25,000 Users
User IDs Registration100,000 Users (Including Fingerprint)
Event Buffers500,000 Events
Fingerprint Template Size500 Byte per Single Fingerprint
Reading RangeIDC80, IDC170: Up to 10cm
Card Reading Time30ms
1:1 Verification TimeLess than 1 sec.
1:N Identification Time (Fingerprint)Less than 2 sec.
Power / CurrentDC 12V / Up to 1A
PoE (Power over Ethernet)IEEE 802.3at (PoE+) / Up to 30W
External Reader Port1 EA: 26Bit Wiegand, 4/8-Bit Burst for PIN for Anti-Passback
Communication10/100 Ethernet (TCP/IP), WiFi Dongle (Optional)
Communication Speed10/100Mbps
Input Port4 EA : Exit Button, Door Sensor, Aux#1, Aux#2
Output Port2 EA :  FORM-C Relay / DC12V ~ 18V, Up to 2A
2 EA :  TTL Output (+5VDC), Up to 20mA
1 EA :  Video Signal for DVR, CVBS
1 EA :  26 Bit Wiegand
Door Phone Functionality4-Wire Video Door Phone I/F ( CVBS , POWER ,GND ,Audio)
USB Port2 EA : USB 1.1 Support
(Utilized for Firmware Upgrade and connecting WIFI Dongle)
Camera / LCDCCD Color Camera : NTSC (410K) or PAL (470K)
TFT Color LCD (320 x 240, 3.5inch, 16.7K)
LanguageLCD DisplayEnglish (Default), Korean, User-Defined
Voice OutputEnglish (Default)
Keypad20 Backlit Numeric Keypad (Includes 4 Function Keys for Time & Attendance)
Operating Temperature0°~ +50°C (When Powered on : -10°~ +50°C)
Operating Humidity10%~90% Relative Humidity, Non-Condensing
ColorBlack
MaterialPolycarbonate
Dimension (W x H x T)104 x 290 x 51.8mm
Weight860g
CertificationFCC, CE, KC, RoHS
* Finger Module Specifications
Resolution500 dpi
Capture Image Size640 x 480 pixels
Extraction Image Size260 x 300 pixels
Sensing Area15mm X 18.5mm
ScannerHigh Quality Optical Sensor
FAR : False Acceptance Ratio0.001%
FRR : False Reject Ratio0.1%
EDS : Elecro Static Discharge±8KV
* Time Schedule
Time Code10
Time Interval5
Holiday Code10
Holiday100
