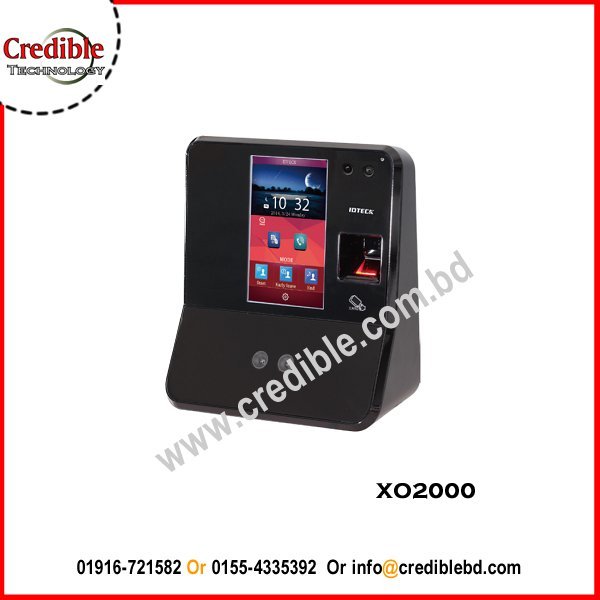

XO2000 FACE RECOGNITION AND FINGERPRINT

৳ 1

FACE & FINGER RECOGNITION

Description

XO2000 FACE RECOGNITION AND FINGERPRINT IDENTIFICATION STANDALONE CONTROLLER

XO2000 FACE RECOGNITION AND FINGERPRINT IDENTIFICATION

System Features

• 125KHz Proximity (IDC) and Fingerprint / Facial Recognition

• Linux Operating System Applied for Higher System Performance and Stability

• Embedded Web Server
– Various Configuration Setting via Web Browser
– Operation without Installation of Management Software

• Power over Ethernet (PoE) Capability
– PoE (IEEE 802.3af and IEEE 802.3at Compliant), Max. 30 Watt Output Load

• Power Out
– 12VDC, 1.3A (in case of PoE Input) / 12VDC, 1.5A(in case of DC Input)

• 5″ Touch Screen Display, 1.3 Megapixel Color Camera, Dual Camera (Color & IR)

• Maximum Registration
– Users (Cardholders): 100,000 Users
– Event Buffers: 500,0000 Events

• WIFI Supportable (Optional)

• Videophone Interface as well as DVR Interface (Optional)

• Individual Configuration Setting per ID
(Time Schedule, Card Usage Expiration Date, Accessible Reader, Door Opening Time, etc.)

• Anti-Passback, Arm/Disarm, Duress Mode, 2-Men Operation Function

• Supports 26Bit Wiegand Output Port
XO2000 may function as a Standalone Controller as well as a Reader

• Tamper Switch (2EA)

• 4 – State Supervised Input (On / Off / Cut / Short)

• Designed to Withstand ESD (Electro Static Discharge) Shock

• Compatible Software: IDTECK STANDARD

* Specification

Model XO2000
CPU 32Bit RISC Microcontroller (ARM-CORTEX A8, 1GHz)
Operating System (OS) Linux 2.6
Memory Program 256MB DDR2 SDRAM
Data 512MB Flash Memory
Storage 4GB MicroSD Card
Fingerprint Registration 5000 Users
User IDs Registration 100,000 Users (Card)
950 Users (Fingerprint) – 4750 Users
Event Buffers 500,000 Events
Fingerprint Template Size 384Bytes per Single Fingerprint
Reading Range IDC80, IDC170: Up to 10cm (4in)
Card Reading Time 30ms
1:1 Verification Time Less than 1 sec.
1:N Identification Time (Fingerprint) Less than 2 sec.
Power / Current 12V DC / Max. 1.2A
PoE (Power over Ethernet) IEEE 802.3af / IEEE 802.3at (PoE) / Up to 30W (Max. 2.5A)
External Reader Port 1 EA: 26Bit Wiegand, 4/8-Bit Burst for PIN for Anti-Passback
Communication 10/100 Ethernet (TCP/IP), RS-485, WiFi Dongle (Optional)
Communication Speed 10/100Mbps
Input Port 4 EA : Exit Button, Door Sensor, Aux#1, Aux#2
2 EA : OK-Input, Error-Input
Output Port 2 EA :  2 FORM-C Relay / DC12V ~ 18V, Up to 2A
2 EA :  TTL Output (+5VDC), Max. 20mA
1 EA :  Video Signal for DVR, CVBS (Opt.)
1 EA :  26 Bit Wiegand
Door Phone Functionality 4-Wire Video Door Phone I/F ( CVBS , POWER ,GND ,Audio)
USB Port 1 EA : USB 2.0 HOST
(Utilized for Firmware Upgrade and connecting WIFI Dongle)
Camera / LCD Dual Camera (Color & IR)
TFT Color Touch LCD (800 x 480, 5inch, 16.7K)
Language LCD Display English (Default), Korean, User-Defined
Voice Output English (Default)
Operating Temperature 0°~ +50°C (32°~ +122°F)
Operating Humidity 10%~90% Relative Humidity, Non-Condensing
Color Black
Material Polycarbonate
Dimension (W x H x T) 190 x 200 x 90mm (7.48″ x 7.87″ x 3.54″)
Weight 900g (Without Bracket), 1.98LBs (Without Bracket)
Certification FCC, CE, RoHS





* Finger Module Specifications



Resolution 500 dpi
Capture Image Size 640 x 480 pixels
Extraction Image Size 260 x 300 pixels
Sensing Area 15mm X 18.5mm
Scanner High Quality Optical Sensor
FAR : False Acceptance Ratio 0.001%
FRR : False Reject Ratio 0.1%
ESD : Elecro Static Discharge ±8KV



 Face Module Specifications



User Storage Capacity 1,000
FAR (Failed Acceptance Rate) < 0.001%
FRR (Failed Rejection Rate) < 1.0%
Focus Mode Fixed Focus
Effect Distance 30cm ~ 80cm
Viewing Angle 60°



* Time Schedule



Time Code 10
Time Interval 5
Holiday Code 10
Holiday 100
