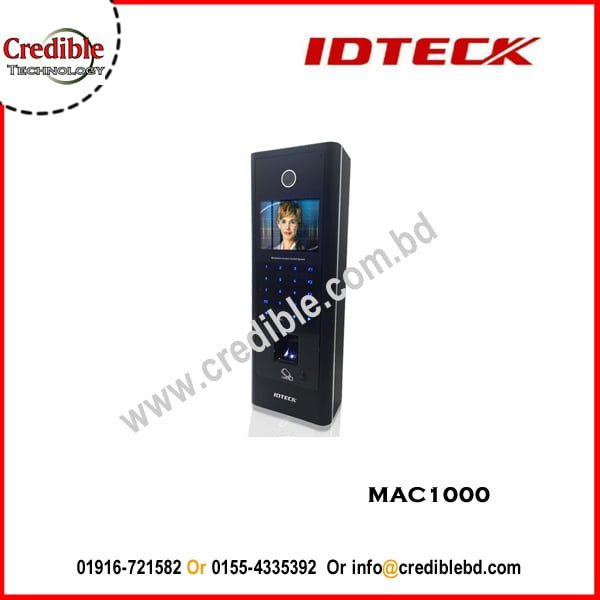

MAC1000 Fingerprint Standalone Controller

৳ 1

Fingerprint Identification Controller

Description

MAC1000 Fingerprint Standalone Controller

MAC1000 Fingerprint Standalone Controller Access Control System and Time Attendance system in Bangladesh.

System Features

Windows CE Operating System Applied for Higher System Performance and Stability
Graphical LCD for Easy Setup and Registration including Multi-Language (English, Korea, and User-Defined) and Voice Guide Support
PoE (Power over Ethernet) Capability
Image / Video of Access Status
– Image (640 x 480 / JPEG): Stores up to 6,000 Images
– Video (640 x 480 / 15FPS) : Stores up to 500 Videos
Fingerprint Registration : 25,000 Users (Two Fingerprint Templates)
– Store up to 5 Fingerprints per User ID
– Allows Registration of 10 Administrator Using the Fingerprint
Maximum Registration
Users (Cardholders): 100,000 Users
Event Buffers: 500,000 Events
WiFi Supportable
Built-in Videophone Interface as well as DVR Interface
Advanced Security Time Schedule Configuration
Individual Configuration Setting per ID
(Time Schedule, Card Usage Expiration Date, Accessible Reader, Door Opening Time, etc.)
Anti-Passback, Arm/Disarm, Duress Mode, 2-Men Operation Function
Alerts generated for when Door Held Open past allowable time as well as Forced Door Open
Supports 26-Bit Wiegand Output Port (MAC1000) / 34-Bit Wiegand Output Port (MAC1000SR)
MAC1000 / MAC1000SR may function as a Standalone Controller as well as a Reader
Tamper Switch (2EA)
4 – State Supervised Input (On / Off / Cut / Short)
Designed to Withstand ESD (Electro Static Discharge) Shock
Compatible Software: IDTECK STANDARD, IDTECK TIME PRO



* Specification
Model MAC1000
CPU 32 Bit ARM11 Processor (667MHz)
Operating System (OS) Microsoft Windows CE 6.0
Memory Program 256M Byte DDR SDRAM
Data 128M Byte Flash Memory
Storage 4GB MicroSD Card
Fingerprint Registration 10,000 ~ 25,000 Users
User IDs Registration 100,000 Users (Including Fingerprint)
Event Buffers 500,000 Events
Fingerprint Template Size 500 Byte per Single Fingerprint
Reading Range IDC80, IDC170: Up to 10cm
Card Reading Time 30ms
1:1 Verification Time Less than 1 sec.
1:N Identification Time (Fingerprint) Less than 2 sec.
Power / Current DC 12V / Up to 1A
PoE (Power over Ethernet) IEEE 802.3at (PoE+) / Up to 30W
External Reader Port 1 EA: 26Bit Wiegand, 4/8-Bit Burst for PIN for Anti-Passback
Communication 10/100 Ethernet (TCP/IP), WiFi Dongle (Optional)
Communication Speed 10/100Mbps
Input Port 4 EA : Exit Button, Door Sensor, Aux#1, Aux#2
Output Port 2 EA :  FORM-C Relay / DC12V ~ 18V, Up to 2A
2 EA :  TTL Output (+5VDC), Up to 20mA
1 EA :  Video Signal for DVR, CVBS
1 EA :  26 Bit Wiegand
Door Phone Functionality 4-Wire Video Door Phone I/F ( CVBS , POWER ,GND ,Audio)
USB Port 2 EA : USB 1.1 Support
(Utilized for Firmware Upgrade and connecting WIFI Dongle)
Camera / LCD CCD Color Camera : NTSC (410K) or PAL (470K)
TFT Color LCD (320 x 240, 3.5inch, 16.7K)
Language LCD Display English (Default), Korean, User-Defined
Voice Output English (Default)
Keypad 20 Backlit Numeric Keypad (Includes 4 Function Keys for Time & Attendance)
Operating Temperature 0°~ +50°C (When Powered on : -10°~ +50°C)
Operating Humidity 10%~90% Relative Humidity, Non-Condensing
Color Black
Material Polycarbonate
Dimension (W x H x T) 104 x 290 x 51.8mm
Weight 860g
Certification FCC, CE, KC, RoHS
* Finger Module Specifications
Resolution 500 dpi
Capture Image Size 640 x 480 pixels
Extraction Image Size 260 x 300 pixels
Sensing Area 15mm X 18.5mm
Scanner High Quality Optical Sensor
FAR : False Acceptance Ratio 0.001%
FRR : False Reject Ratio 0.1%
EDS : Elecro Static Discharge ±8KV
* Time Schedule
Time Code 10
Time Interval 5
Holiday Code 10
Holiday 100
