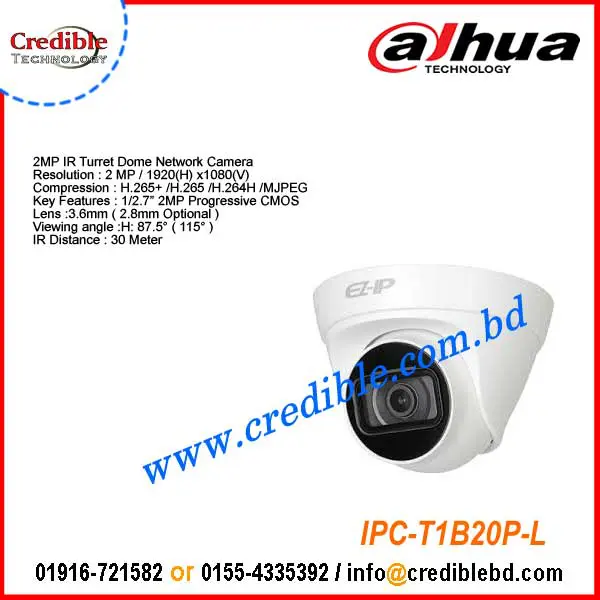

IPC-T1B20-L – Dahua EZ IP Dome Camera

৳ 3,800

Dahua EZ IP Dome Camera

Brand: Dahua Bangladesh

Description

Dahua IPC-T1B20-L price in Bangladesh | Dahua cctv camera in Bangladesh | Dahua 2MP / 3MP / 4MP / 5MP IP Camera Price in Bangladesh | Dahua Network PTZ Camera in Bangladesh | Dahua IP Camera supplier in Bangladesh | Dahua 1MP IP Camera price in Bangladesh | Dahua IP PTZ Camera price in Bangladesh | Dahua wifi / bullet / Dome and Night vision CC Camera price in Bangladesh |

IPC-T1B20-L Dahua EZ IP Dome Camera – Dahua Security

2MP IR Turret Network Camera

  • 1/2.7” 2 Megapixel progressive CMOS
  • H.265+ & H.265 dual-stream encoding
  • 20fps@1080P(1920×1080) & 25/30fps@1.3MP(1280×960)
  • DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 2.8 mm fixed lens (3.6mm optional)
  • Max IR LEDs Length 30m
  • IP67, PoE

Technical Specification

Camera
Image Sensor 1/2.7” 2 Megapixel progressive CMOS
Effective Pixels 1920(H) x1080(V)
RAM/ROM 64MB/16MB
Scanning System Progressive
Minimum Illumination 0.09Lux/F2.0(Color,1/3s,30IRE)

0.5Lux/F2.0(Color,1/30s,30IRE)

0 Lux/F2.0(IR on)

S/N Ratio More than 50dB
IR Distance Distance up to 30m(98ft)
IR On/Off Control Auto/ Manual
IR LEDs 1
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 2.8 mm (3.6 mm optional)
Max. Aperture F2.0/F2.0
Angle of View H:115°/87.5°, V:60°/47°
Focus Control Fixed
Close Focus Distance 0.5m(1.64ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 43.5m(143ft) 17.4m(57ft) 8.7m(28.5ft) 4.3m(14ft)
3.6 mm 53.3m(175ft) 21.3m(70ft) 10.7m(35ft) 5.3m(17.4ft)
PTZ
Pan/Tilt Range Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°
Video
Compression H.265/H.264H/MJPEG(Sub Stream)
Smart Codec Support H.265+/H.264+
Streaming Capability 2 Streams
Resolution 1080P(1920×1080)/1.3M(1280×960)/

720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/ CIF(352×288/352×240)

Frame Rate Main Stream: 1080P (1 ~ 20fps)
Sub Stream: D1(1 ~ 25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H 265:12K~5632K

H.264:32K ~8192K

Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / DWDR
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization (EIS) N/A
Smart IR Support
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression N/A
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP;TCP;ARP;RTSP;RTP;RTCP;UDP;DHCP;DNS;IPV4;NTP;Multicas; ICMP; TLS
Interoperability ONVIF Profile S&G
Streaming Method Unicast / Multicast
Max. User Access 10 Users/20 Users
Edge Storage N/A
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS,DMSS
Smart Phone IOS, Android
Certifications
Certifications CE: (EN 60950:2000)

FCC: FCC Part 15 Subpart B

Interface
Video Interface N/A
Audio Interface N/A
RS485 N/A
Alarm N/A
Electrical
Power Supply DC12V, PoE (802.3af)(Class 0)
Power Consumption <4.8W
Environmental
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Storage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance N/A
Construction
Casing Metal+Plastic
Dimensions Φ109mm×85.5mm(4.29”x3.36”)
Net Weight 0.24Kg(0.53lb)
Gross Weight 0.36Kg(0.79lb)
