Hundure RAC-900 Access Control

(1 customer review)

৳ 17,600

RAC 800/900 Access Controller

SKU: RAC-900 Categories: , Tag:

Description

RAC-900 Hundure RFID Time Attendance with Access Control system in Bangladesh, Hundure importer in Bangladesh, Hundure distributor Bangladesh

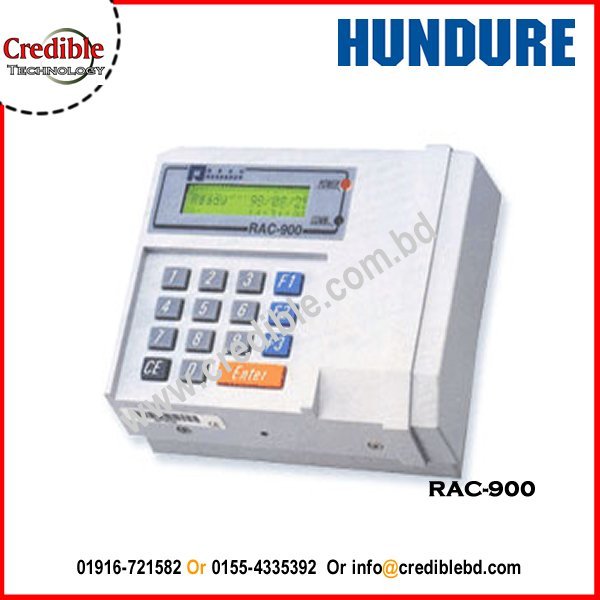

Hundure RAC-900 Access Control & Time Attendance system



Specifications

Model No. RAC-800 RAC-900
Input ports 3 Sensors
(Door Sensor,
Exit Button,
Case Sensor)
8 Sensors
( Five of input port reserved )
(Door Sensor, Exit Button,
Case Sensor)
Output Ports 2 Relay (Door Lock, Alarm)
Cardholders 4,096
Events 2,048 (max)
LED Indicator Power x 1, COMM. x 1
LCD Display 2 lines messages, 16 characters per line, with back light
Keypad 15 keys 0~9, F1, F2, F3, CE, Enter
Real Time Clock Yes
Beep Tone Buzzer
ID Setting Software
Read Format & Range ABA-Track2 / Wiegand26 x 1
* Bar Code type Resolution: 0.15mm;
Scanning Speed:100~1000mm/sec
* Magnetic Type ISO3554 Standard Track 1 or 2 or 3
Scanning Speed: 3~40ips
* Proximity type RF 125 KHz, Effective range : 8~10cm
* Mifare type RF 13.56 MHz, Effective range : 5cm
* HID Type RF 125 KHz, Wiegand 26
Power Output DC5V 100mA / DC12V 100mA (max.) for slave reader
Power Input DC 12V / 1A
Power Consumption 5W (max.)
Comm. Interface RS-232 / RS-422 / RS-485
Comm. Baudrate 9600 bps-N-8-1
Operating Temp. 0° C ~ 50° C / 32° F ~ 122° F
Relative Humidity 20% ~ 80%(Non-condensing)
Dimension 153mm(L) x 120mm(W) x 60mm(H)
Weight (Device) 692g
