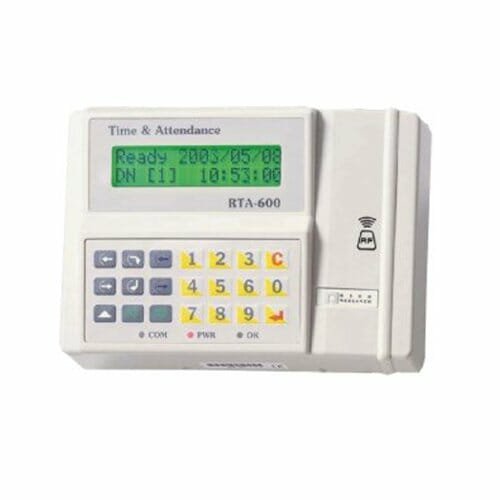

Hundure RTA-600P Access control and attendance

Description

RTA-600P Time Attendance Recorder for Time and Attendance Recording Systems in Bangladesh. Hundure time attendance system provider in Bangladesh.

Hundure RTA-600P Access control and time attendance

Features :

• Memory full warning.
• Programmable shift schedule.
• Limitation of unsuccessful swiped card attempts.
• Watchdog function ensures system free from halting.
• Data collection software with DBF or TXT file export formats.
• Dual function for Time Attendance and Basic Access Control.
• Invalid and re-swiped card off-the-record saves memory capacity.
• 20 siren output enabled for shift change and disabled for holidays .
• Extra parallel printer port for real time data output and examination.
• LCD display of date, time, card number, shift schedule, Cardholder name.
• Dynamic control of memory up to 2,048 cardholders /4,800 transaction data.
• Standalone/Network communication via RS232/RS422/RS485/TCP/IP. (External Converter required)
• On board Lithium battery for max.60 days data storage during power outage.

Input Ports Output Ports Cardholders/Events LED Indicator LCD Display Keypad Real Time Clock Beep Tone ID Setting Read Format & Range ‧Bar Code type ‧Magnetic Type ‧EM Type ‧Mifare Type ‧HID Type Power Input Power Consumption Comm. Interface Comm. Baud Rate Operating Temp. Relative Humidity Dimension Weight (Device) 1 Sensor (Exit Button) 2 Relays (Electronic Lock, Siren) 2,048 / 4,800 (max.) OK, COMM., Power 2 lines messages, 16 characters per line, with back light. 21 keys Yes Buzzer IP tool setting ABA-Track2 / Wiegand 26 x 1 Resolution: 0.15mm; Scanning Speed: 100~1000mm/sec ISO3554 Standard Track 1 or 2 or 3 Scanning Speed: 3~40ips RF 125 KHz, Effective range: 8~10cm RF 13.56 MHz, Effective range: 5cm RF 125KHz, Wiegand 26 DC 12V / 1A 7W (max.) RS-232 / RS-422 / RS-485 9600 bps-N-8-1 0° C ~ 50° C / 32° F ~ 122° F 20% ~ 95% (Non-condensing) 140mm(L) x 205mm (W) x 70mm (H) 749g
