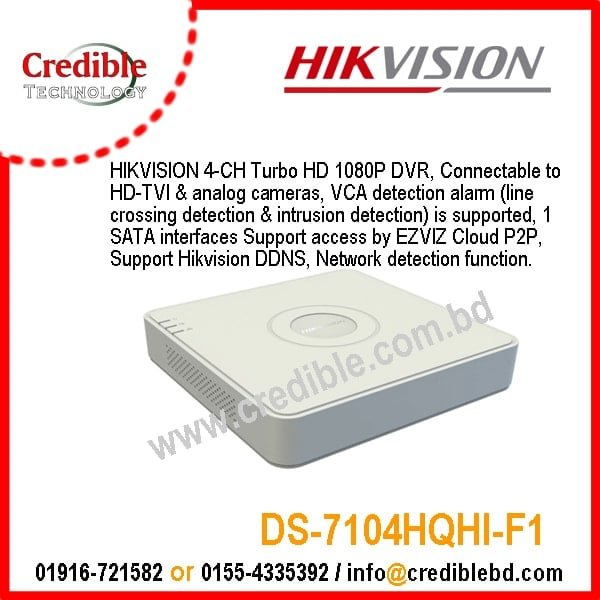

Hikvision DS-7104HQHI-F1 HD-TVI DVR Price

৳ 5,800

DS-7104HQHI-F1
Turbo HD DVR

Description

Hikvision DS-7104HQHI-F1 HD-TVI DVR Price in Bangladesh | Hikvision DS-7104HQHI-F1 Price in Bangladesh | Hikvision DVR Distributor in Bangladesh | Hikvision DVR service provider in Bangladesh | Hikvision DVR supplier in Bangladesh | Hikvision 4 Channel DVR price in Bangladesh | Hikvision 8 Channel DVR price in Bangladesh | Hikvision 16 Channel DVR price in Bangladesh | Hikvision 32 Channel DVR price in Bangladesh |

Hikvision DS-7104HQHI-F1 HD-TVI DVR Price in Bangladesh

Video/Audio Input
Audio Input: | 1-ch
Video Compression: | H.264,H.264+
Analog and HD-TVI video input: | 16-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types: | Support HDTVI input: 3 MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz
Note: The 3 MP signal input is only available for the first channel of DS-7104HQHI-F1/N, the first 2 channels of DS-7108HQHI-F1/N, and the first 4 channels of DS-7116HQHI-F1/N.
Support AHD input: 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz
support CVBS input
Video Input Interface: | BNC (1.0 Vp-p, 75Ω)
Audio Compression: | G.711u
Audio Input Interface: | RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)
Video/Audio Output
HDMI/VGA Output: | HDMI: 1-ch,4K(3840×2160)/30Hz,2K(2560×1440)/60Hz,
1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024 ×768/60Hz
VGA:1-ch,2K(2560×1440)/60Hz,1920×1080/60Hz,
1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz
Recording resolution: | When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode enabled: 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF
Frame Rate: | Main stream:
When 1080p Lite mode not enabled:
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@12fps
For 1080p stream access: 1080p/720p@12fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate: | 32 Kbps-6 Mbps
Stream Type: | Video/Video&Audio
Audio Output: | 1-ch RCA(Linear, 1kΩ)
Audio Bit Rate: | 64kbps
Dual Stream: | Support
Playback Resolution: | 3 MP/1080p/720p/VGA/WD1/4CIF/CIF
Synchronous Playback: | 16-ch
Network management
Remote connections: | 128
Network protocols: | TCP/IP, PPPoE, DHCP, Hik Cloud P2P,DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS,ONVIF
Hard Disk Driver
Interface Type: | 1 SATA Interface
Capacity: | Up to 6 TB capacity for each disk
External Interface
Network Interface: | 1; 10M / 100M / 1000M self-adaptive Ethernet interface
USB Interface: | 2 USB 2.0 Interfaces
General
Power Supply: | 12V DC
Consumption: | ≤ 20W(without hard disks)
Working Temperature: | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF)
Working Humidity: | 10% ~ 90%
Chassis: | Mini 1U chassis
Dimensions: | 285 × 210 × 45 mm
(11.2× 8.3 × 1.8 inch)
Weight: | ≤1.2 kg(2.6lb)
